Base class for objects that perform a specific task reqursively. More...

#include <QDaqJob.h>

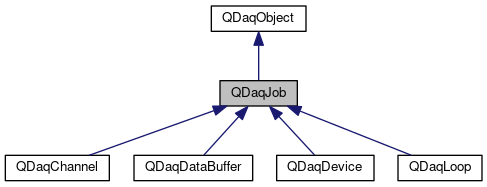

Inheritance diagram for QDaqJob:

Collaboration diagram for QDaqJob:

Public Member Functions
Q_INVOKABLE	QDaqJob (const QString &name)
	QDaqJob constructor. More...

virtual void	attach ()
	Attach this QDaqObject to the QDaq tree. More...

virtual void	detach ()
	Detach this QDaqObject from the QDaq tree. More...

QDaqLoop *	topLoop () const
	Returns the top level loop that this job belongs to.

QDaqLoop *	loop () const
	Returns the loop that this job belongs to.

virtual QDaqScriptEngine *	loopEngine () const
	Returns the QDaqScriptEngine of the top level loop.

Public Member Functions inherited from QDaqObject
Q_INVOKABLE	QDaqObject (const QString &name)
	Construct a QDaqObject with a name. More...

bool	isAttached () const
	Returns true is this object is attached to the QDaq tree.

Protected Member Functions
virtual bool	arm_ ()
	Performs internal initialization for the job. More...

virtual void	disarm_ ()
	Performs internal de-initialization. More...

bool	setArmed (bool on)
	Arms or disarms a job. More...

virtual bool	exec ()
	Called when the job is executed. More...

virtual bool	run ()
	This function performs the actual task of this QDaqJob. More...

Protected Member Functions inherited from QDaqObject
void	pushError (const QString &type, const QString &descr=QString()) const
	Push an error in the error queue.

void	throwScriptError (const QString &msg) const
	Throw a script error with message msg.

bool	checkName (const QString &name) const
	Check if name is a legal name for an QDaqObject. More...

virtual void	writeh5 (H5::Group g, QDaqH5File f) const
	Write contents of the object to a H5 group. More...

virtual void	readh5 (H5::Group g, QDaqH5File f)
	Read contents of the object from a H5 group. More...

Properties
bool	armed
	True if job is armed. More...

QString	runCode
	Script code executed by the job at each repetition. More...

QString	armCode
	Script code executed by the job in the arming face. More...

QString	disarmCode
	Script code executed by the job in the dis-arming face. More...

Additional Inherited Members
Public Slots inherited from QDaqObject
QString	errorBacktrace (int maxItems=10) const
	Print a backtrace of recent errors in this QDaqObject.

QString	path () const
	Return the object's path in the QDaq tree. More...

QString	objectTree () const
	Output in a string the object hierarchy beneath this object.

QString	listProperties () const
	List the objects properties.

QString	listFunctions () const
	List the objects scriptable functions.

QDaqObject *	parent () const

QDaqObjectList	children () const
	Return a list of children of this object.

bool	hasChildren () const
	Returns true if the object has children.

QDaqObject *	appendChild (QDaqObject *obj)
	Adds a new child QDaqObject, as the last child and returns a pointer to it.

QDaqObject *	insertBefore (QDaqObject newobj, QDaqObject existingobj)
	Adds a new child QDaqObject, before an existing child and returns a pointer to it.

QDaqObject *	clone ()
	Clone a QDaqObject with its child objects.

QDaqObject *	removeChild (QDaqObject *obj)
	Remove a child and return a pointer to it.

QDaqObject *	replaceChild (QDaqObject newobj, QDaqObject oldobj)
	Replace a child and return a pointer to the old child.

QDaqObject *	findChild (const QString &name) const
	Find the first child QDaqObject with objectName equal to name.

Signals inherited from QDaqObject
void	propertiesChanged ()
	Fired when object properties have changed.

void	updateWidgets ()
	Fired when widgets need update.

Static Public Member Functions inherited from QDaqObject
static QDaqRoot *	root ()
	Obtain a pointer to the one-and-only QDaqRoot object.

static QDaqObject *	fromPath (const QString &path)
	Return a pointer to an object given its full path in the QDaq tree. More...

Public Attributes inherited from QDaqObject
QMutex	comm_lock
	A recursive mutex for synching thread access to this object.

Detailed Description

Base class for objects that perform a specific task reqursively.

Jobs can be organized as children of a parent-job or children of the super-class QDaqLoop.

When a QDaqLoop runs all its child jobs are executed by calling their exec() function. The exec() function first calls run() to perform the actual processing of this job (if there is any) and then calls exec() of each child job.

To give an example of the order that jobs are executed, the following job tree:

job0
 |--job1
 |   |--job11
 |   |--job12
 |--job2
 |--job3

will be executed with the following order: job0-job1-job11-job12-job2-job3

Before the job can perform its task it must be "armed". Arming does all the necessary initialization and is implemented in the function setArmed().

Definition at line 46 of file QDaqJob.h.

Constructor & Destructor Documentation

QDaqJob::QDaqJob ( const QString & name )

explicit

QDaqJob constructor.

Parameters

name	The QDaqObject name.

Definition at line 5 of file QDaqJob.cpp.

Member Function Documentation

bool QDaqJob::arm_ ( )

protectedvirtual

Performs internal initialization for the job.

It is called by the setArmed() function.

This function can be reimplemented to perform specific initialization for a job. The parent class arm_() function should be called afterwards.

In the default implementation, if a loopEngine() exists the script code is checked against the script engine for errors.

If initialization is sucessfull it returns true, otherwise the function returns false.

Reimplemented in QDaqLoop, QDaqChannel, and QDaqDevice.

Definition at line 55 of file QDaqJob.cpp.

void QDaqJob::attach ( )

virtual

Attach this QDaqObject to the QDaq tree.

This function is called when the object becomes part of the QDaq tree.

In the base class implementation this function signals the root object that a new QDaqObject has been inserted in the tree and then calls attach() for each child QDaqObject.

Subclasses may reimplement this function to perform specific initialization.

Reimplemented from QDaqObject.

Definition at line 12 of file QDaqJob.cpp.

void QDaqJob::detach ( )

virtual

Detach this QDaqObject from the QDaq tree.

This function is called just before the object becomes detached from the QDaq tree.

In the base class implementation it first calls detach() for each child QDaqObject and then signal root that the object is removed from the qdaq tree.

Subclasses may reimplement this function to perform needed actions before detaching.

Reimplemented from QDaqObject.

Reimplemented in QDaqChannel, and QDaqDevice.

Definition at line 16 of file QDaqJob.cpp.

void QDaqJob::disarm_ ( )

protectedvirtual

Performs internal de-initialization.

It is called by the setArmed() function.

Can be reimplemented to define special behavior during dis-arming. The parent class disarm_() should be called.

Reimplemented in QDaqLoop.

Definition at line 91 of file QDaqJob.cpp.

bool QDaqJob::exec ( )

protectedvirtual

Called when the job is executed.

If armed is false, the function does nothing.

If armed is true, then this job's run() is called and then the exec() of all sub-jobs.

The function is called by the parent loop's QDaqLoop::exec() function.

Returns: false if run() return false or some child-job returns false; true otherwise.

Reimplemented in QDaqLoop.

Definition at line 26 of file QDaqJob.cpp.

bool QDaqJob::run ( )

protectedvirtual

This function performs the actual task of this QDaqJob.

It can be reimplemented in subclasses to define the specific job that must be performed.

In the base implementation, it executes the script code if available.

Returns: false if a serious error occured, true otherwise.

Reimplemented in QDaqChannel, and QDaqDataBuffer.

Definition at line 38 of file QDaqJob.cpp.

bool QDaqJob::setArmed ( bool on )

protected

Arms or disarms a job.

If on is true then setArmed() is called for each child-QDaqJob (not QDaqLoop) and finally arm_() is called to initialize this job. If any of those calls return false the arming is aborted and false is returned.

If on is false then disarm_() is called first and then setArmed() with parameter false is called for each child job.

This funtion is protected so that it cannot be called directly. QDaqJob objects are armed by their parent QDaqLoop, when calling QDaqLoop::arm().

Parameters

on	If true the job is armed otherwise it is disarmed.

Returns: true if the operation was sucesfull.

Definition at line 129 of file QDaqJob.cpp.

Property Documentation

QString QDaqJob::armCode

readwrite

Script code executed by the job in the arming face.

If code is empty then nothing will be executed.

The script code is executed in the root engine, in the main application thread.

Definition at line 79 of file QDaqJob.h.

bool QDaqJob::armed

read

True if job is armed.

An armed job is ready to run. If the armed QDaqJob belongs to a loop it will execute its task.

This property is read-only.

Definition at line 58 of file QDaqJob.h.

QString QDaqJob::disarmCode

readwrite

Script code executed by the job in the dis-arming face.

If code is empty then nothing will be executed.

The script code is executed in the root engine, in the main application thread.

Definition at line 89 of file QDaqJob.h.

QString QDaqJob::runCode

readwrite

Script code executed by the job at each repetition.

If code is empty then nothing will be executed.

The script code is executed by the top loop script engine, which is obtained by loopEngine(). This script engine lives in the top-loop thread.

Definition at line 69 of file QDaqJob.h.

The documentation for this class was generated from the following files:

/home/george/Dev/rtlab/qdaq/lib/core/QDaqJob.h
/home/george/Dev/rtlab/qdaq/lib/core/QDaqJob.cpp
